HIERRO Y POLIURETANO SERIE HI-TECH


Ruedas Solas
.




Aro de poliuretano (Dureza 90 Shore A). Núcleo de fundición de hierro. Con rulemanes.

Diámetro Ancho Diámetro
interior
Carga
Kgs.
Eje Cod.
75 32 12mm 200 Rulemanes 4586
100 50 17mm 500 Rulemanes 5100
125 50 17mm 600 Rulemanes 5101
150 50 17mm 700 Rulemanes 5102
200 50 20mm 900 Rulemanes 5105
200 70 25mm 1200 Rulemanes 5106
250 50 20mm 1000 Rulemanes 5108
250 70 25mm 1300 Rulemanes 5109
300 70 25mm 1400 Rulemanes 5111


Art 5105


Ruedas con soporte - Serie TV

Soporte de acero estampado. Alas de 4mm de espesor. Plato de 6mm de espesor. Acabado zincado. Soporte giratorio de doble hilera de bolas. Protector anti-polvo. Opcional freno total sobre soporte y rueda.





Soporte giratorio - plato para 4 tornillos

Diámetro Ancho Carga
Kgs.
Eje
Altura
total
Plato
mm.
Entre centros Código
75 32 170 Rulemanes 106 105x85 80x60 3730
100 50 300 Rulemanes 142 135x100 105x80 3731
125 50 350 Rulemanes 165 135x100 105x80 5065
150 50 400 Rulemanes 195 135x100 105x80 5066
200 50 500 Rulemanes 240 135x100 105x80 5067
250 50 600 Rulemanes 295 135x100 105x80 5068

Art 5066







Soporte giratorio - plato para 4 tornillos y freno

Diámetro Ancho Carga
Kgs.
Eje
Altura
total
Plato
mm.
Entre centros Código
75 32 170 Rulemanes 106 105x85 80x60 3732
100 50 300 Rulemanes 142 135x100 105x80 3733
125 50 350 Rulemanes 165 135x100 105x80 5069
150 50 400 Rulemanes 195 135x100 105x80 5070
200 50 500 Rulemanes 240 135x100 105x80 5071
250 50 600 Rulemanes 295 135x100 105x80 5072

Art 5070







Soporte fijo - plato para 4 tornillos

Diámetro Ancho Carga
Kgs.
Eje
Altura
total
Plato
mm.
Entre centros Código
75 32 170 Rulemanes 106 105x85 80x60 3734
100 50 300 Rulemanes 142 135x100 105x80 3735
125 50 350 Rulemanes 165 135x100 105x80 5073
150 50 400 Rulemanes 195 135x100 105x80 5074
200 50 500 Rulemanes 240 135x100 105x80 5075
250 50 600 Rulemanes 295 135x100 105x80 5076

Art 5074






Ruedas con soporte - Serie PX

Soportes para grandes cargas. Alas fuertemente soldadas. Giro axial en base a un rodamiento cónico a rodillos. Giro radial sobre una crapodina. Sistema de fijación: base para 4 tornillos. Consultar por freno.





Soporte giratorio - plato para 4 tornillos

Diámetro Ancho Carga
Kgs.
Eje
Altura
total
Plato
mm.
Entre centros Código
100 50 500 Rulemanes 155 140x130 115x105 5120
125 50 600 Rulemanes 183 140x130 115x105 5121
150 50 700 Rulemanes 205 140x130 115x105 5122
200 50 900 Rulemanes 251 140x130 115x105 5123
250 50 1000 Rulemanes 306 140x130 115x105 5124
200 70 1200 Rulemanes 260 200x152 160x115 5126
250 70 1300 Rulemanes 315 200x152 160x115 5127
300 70 1400 Rulemanes 370 200x152 160x115 5128

5122

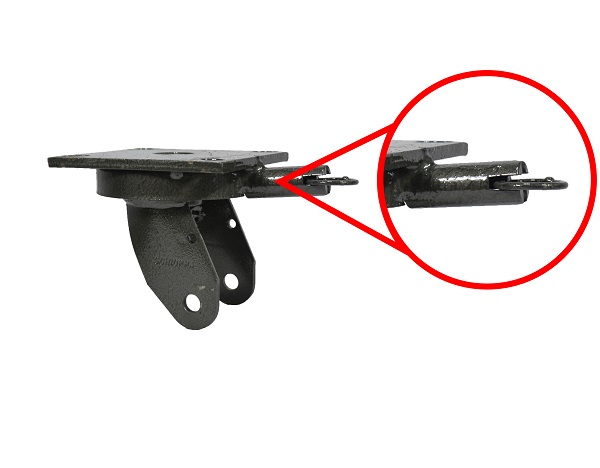

Consultar por soportes con bloqueo de giro (convierte a una rueda giratoria en fija)




Soporte giratorio - plato para 4 tornillos y freno

Diámetro Ancho Carga
Kgs.
Eje
Altura
total
Plato
mm.
Entre centros Código
100 50 500 Rulemanes 155 140x130 115x105 5190
125 50 600 Rulemanes 183 140x130 115x105 5191
150 50 700 Rulemanes 205 140x130 115x105 5192
200 50 900 Rulemanes 251 140x130 115x105 5193
250 50 1000 Rulemanes 306 140x130 115x105 5194
200 70 1200 Rulemanes 260 200x152 160x115 5187
250 70 1300 Rulemanes 315 200x152 160x115 5188
300 70 1400 Rulemanes 370 200x152 160x115 5189

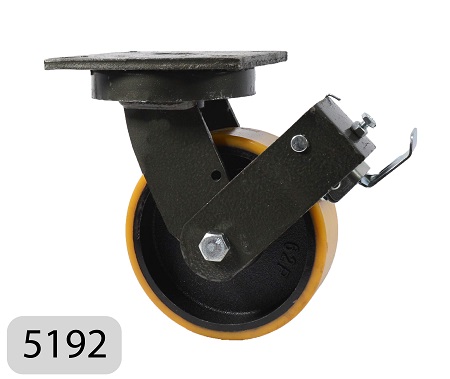

Art 5192







Soporte fijo - plato para 4 tornillos

Diámetro Ancho Carga
Kgs.
Eje
Altura
total
Plato
mm.
Entre centros Código
100 50 500 Rulemanes 155 140x130 115x105 5134
125 50 600 Rulemanes 183 140x130 115x105 5135
150 50 700 Rulemanes 205 140x130 115x105 5136
200 50 900 Rulemanes 251 140x130 115x105 5137
250 50 1000 Rulemanes 306 140x130 115x105 5138
200 70 1200 Rulemanes 260 200x152 160x115 5140
250 70 1300 Rulemanes 315 200x152 160x115 5141
300 70 1400 Rulemanes 370 200x152 160x115 5142

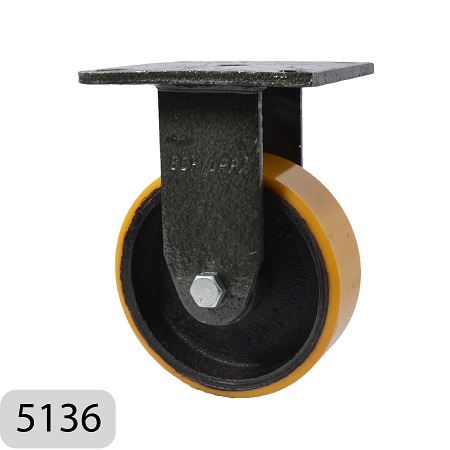

5136






Ruedas con soporte - Serie APX

Soportes para grandes cargas con sistema de amortiguación. Alas fuertemente soldadas. Giro axial en base a un rodamiento cónico a rodillos. Giro radial sobre una crapodina. Sistema de fijación: base para 4 tornillos. Consultar por freno.





Soporte giratorio - plato para 4 tornillos

Diámetro Ancho Carga
Kgs.
Eje
Altura
total
Plato
mm.
Entre centros Código
150 50 180 Rulemanes 220 140x130 115x105 5150
200 50 250 Rulemanes 292 180x140 150x100 5151
250 50 250 Rulemanes 340 180x140 150x100 5152

Art 5151







Soporte giratorio - plato para 4 tornillos y freno

Diámetro Ancho Carga
Kgs.
Eje
Altura
total
Plato
mm.
Entre centros Código
150 50 180 Rulemanes 220 140x130 115x105 5195
200 50 250 Rulemanes 292 180x140 150x100 5196
250 50 250 Rulemanes 340 180x140 150x100 5197

5196







Soporte fijo - plato para 4 tornillos

Diámetro Ancho Carga
Kgs.
Eje
Altura
total
Plato
mm.
Entre centros Código
150 50 180 Rulemanes 220 140x130 115x105 5157
200 50 250 Rulemanes 292 180x140 150x100 5158
250 50 250 Rulemanes 340 180x140 150x100 5159

Art 5158






Ruedas con soporte - Serie D

Soportes para grandes cargas. Alas fuertemente soldadas. Giro axial en base a un rodamiento cónico a rodillos. Giro radial sobre una crapodina. Sistema de fijación: base para 4 tornillos. Doble rueda con rulemanes.





Soporte giratorio - plato para 4 tornillos

Diámetro Ancho Carga
Kgs.
Eje
Altura
total
Plato
mm.
Entre centros Código
150 2x70 2000 Rulemanes 240 200x200 160x160 5182
200 2x70 2400 Rulemanes 290 200x200 160x160 5170
250 2x70 2600 Rulemanes 348 200x200 160x160 5171
300 2x70 2800 Rulemanes 398 200x200 160x160 5172

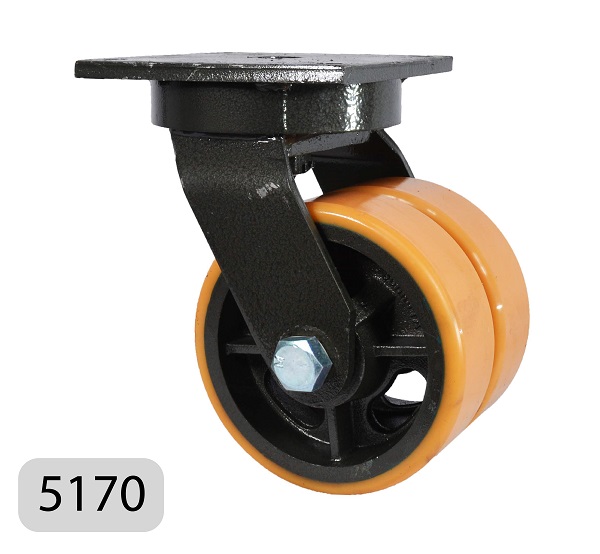

Art 5170







Soporte fijo - plato para 4 tornillos

Diámetro Ancho Carga
Kgs.
Eje
Altura
total
Plato
mm.
Entre centros Código
150 2x70 2000 Rulemanes 240 200x200 160x160 5186
200 2x70 2400 Rulemanes 290 200x200 160x160 5176
250 2x70 2600 Rulemanes 348 200x200 160x160 5177
300 2x70 2800 Rulemanes 398 200x200 160x160 5178

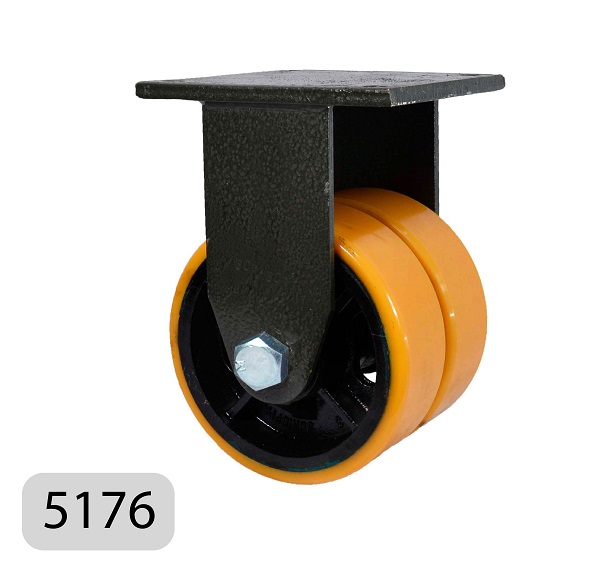

Art 5176
